DeleteABSFile
Description
Deletes blob files in the specified virtual directory.
info
- Ensure that you have a properly configured SFTP connection resource set up under the Resources folder.
- SFTP file names are typically case-sensitive; therefore, abc.JPG, abc.jpg, and ABC.jpg will be saved as different files. To ensure consistency, we recommend using lower-case file names and extensions: abc.jpg.
Configuring the DeleteABSFile Activity

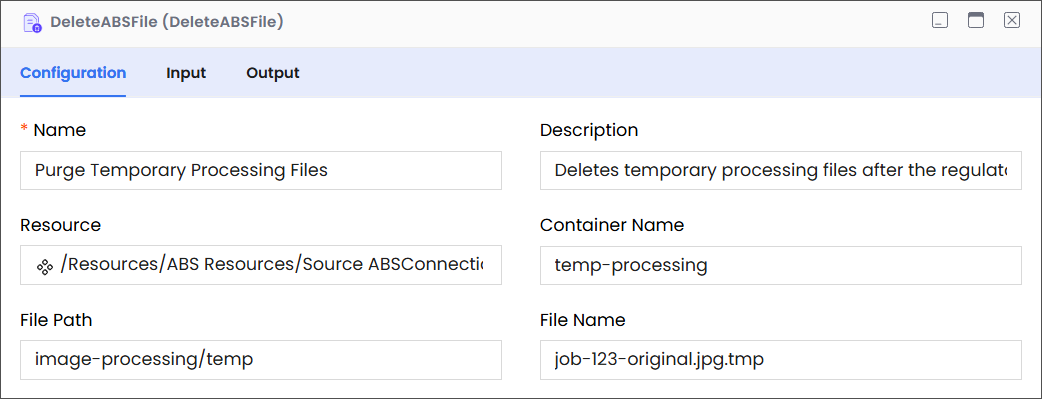

The DeleteABSFile Configuration panel has four tabs: Configuration, Advanced, Input, and Output.
Configuration
| Field | Required | Description | Example |
|---|---|---|---|
| Name | Required | The name of the activity. This name must be unique in a workflow. | Purge Temporary Processing Files |
| Description | Optional | The description of the activity. We recommend you make this as clear as possible to guide execution, foster understanding, and support collaboration. | Deletes temporary processing files after the regulatory retention period. |
| Resource | Required | A predefined resource for accessing ABS blobs. | /Resources/ABSConnection |
| Container Name | Required | The name of the container in ABS. | temp-processing |
| File Path | Required | The location of the virtual directory that contains the blob that you want to delete. Note While entering the path, only include the virtual directories without adding the container name, because the container name is already specified (see Container Name, above). | For example, consider the following complete path:
In this complete path:
|
| File Name | Required | The name of the blob file that you want to delete. | job-123-original.jpg.tmp |
See the Advanced Configuration section below for more details.
Input
| Field | Required | Data Type | Description | Example |
|---|---|---|---|---|
| filepath | Optional | String | The location of the virtual directory (without the container name) that contains the blob that you want to delete. | image-processing/temp |
| filename | Optional | String | The name of the file that you want to delete. | job-123-original.jpg.tmp |
Output
| Field | Required | Data Type | Description | Example |
|---|---|---|---|---|
| JSON Schema | Optional | NA | A custom schema that can be imported. | NA |
